Arduino Nano Compatible

  1. Shop
  2. Development Boards
  3. Arduino
  4. Arduino Compatible Boards
  5. Arduino Nano Compatible
Arduino Nano Compatible - Image 1
Arduino Nano Compatible - Image 2
Arduino Nano Compatible - Image 3

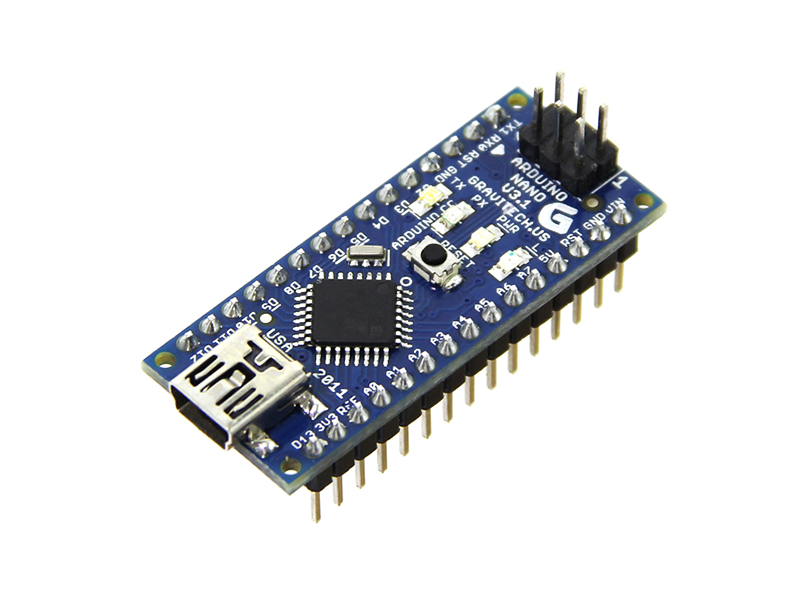

Arduino Nano

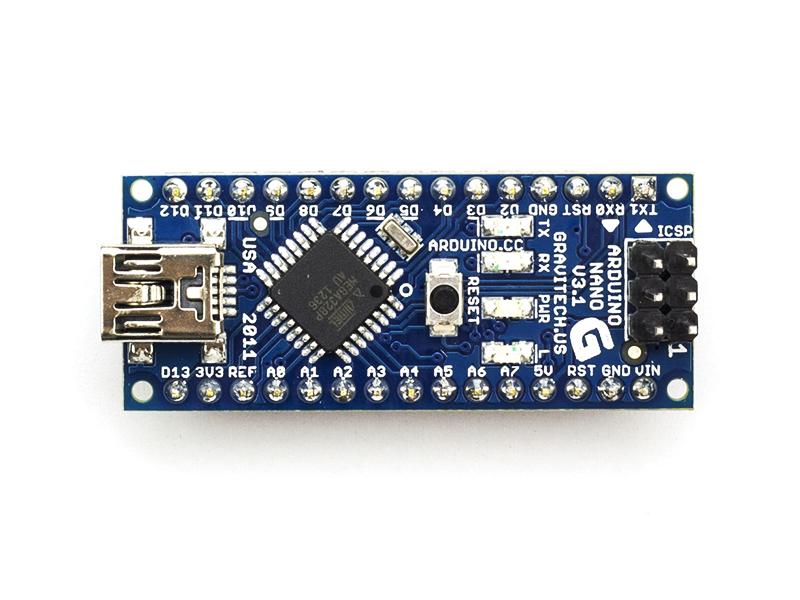

Arduino Nano Top

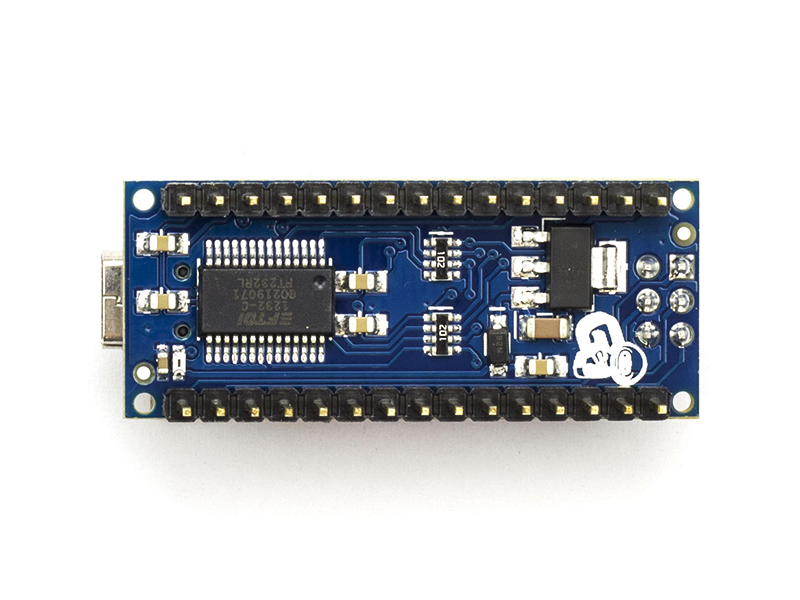

Arduino Nano Bottom
Arduino Nano Compatible - Thumb 1
Arduino Nano Compatible - Thumb 2
Arduino Nano Compatible - Thumb 3
LKR 1,100.00
LKR 1,200.00
8% OFF
Out of Stock
View Product Details

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) orATmega168 (Arduino Nano 2.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one. The Nano was designed and is being produced by Gravitech.

Specifications

Clock Speed
16 MHz
Current
DC Current per I/O Pin - 40 mA
EEPROM
1 KB
Flash Memory
32 KB of which 2 KB used by bootloader
I/O Pins
Digital I/O Pins - 14 (of which 6 provide PWM output) Analog Input Pins - 8
Input Voltage
Recommended 7-12 V Limits 6-20 V
Length x Width
45 mm x 18 mm
Microcontroller
ATmega328
Operating Voltage
5 V
Package
Arduino Nano Compatible Board
SRAM
2 KB
Weight
5 g
